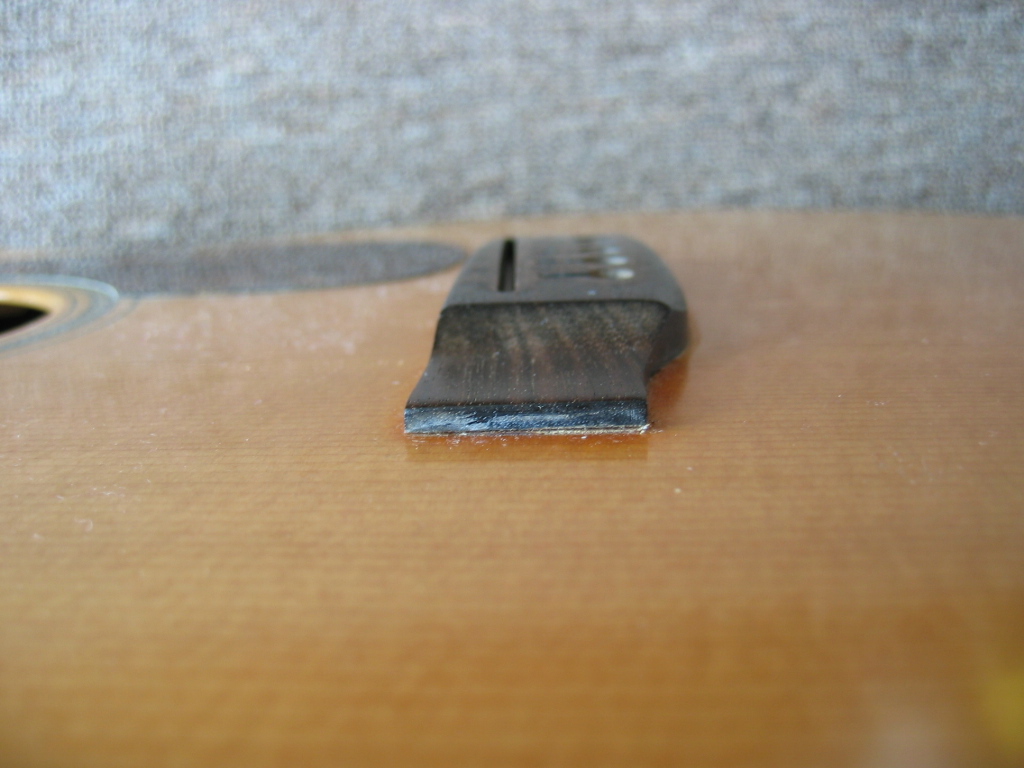

The bridge on the subject Martin 000C-16R GTE is
lifting slightly. I understand from the owner this problem was addressed
by another repairman some time back. However, the bridge is lifting again

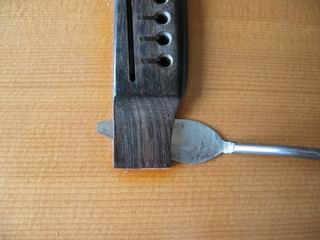

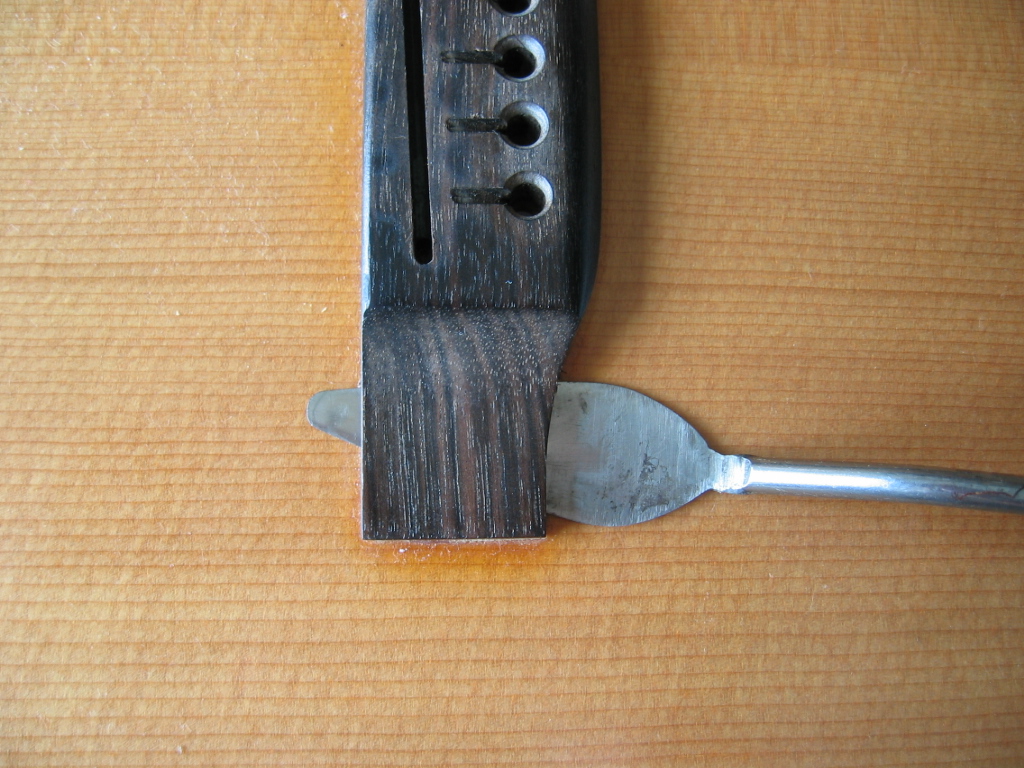

and one can actually see a film of glue under the bridge. It didn't take
any effort to insert my custom thinned spatula under the bridge. It was
agreed that the bridge has to be removed, cleaned and
re-glued. |
|
|
The area
around the bridge is carefully masked and heat is applied to the bridge to

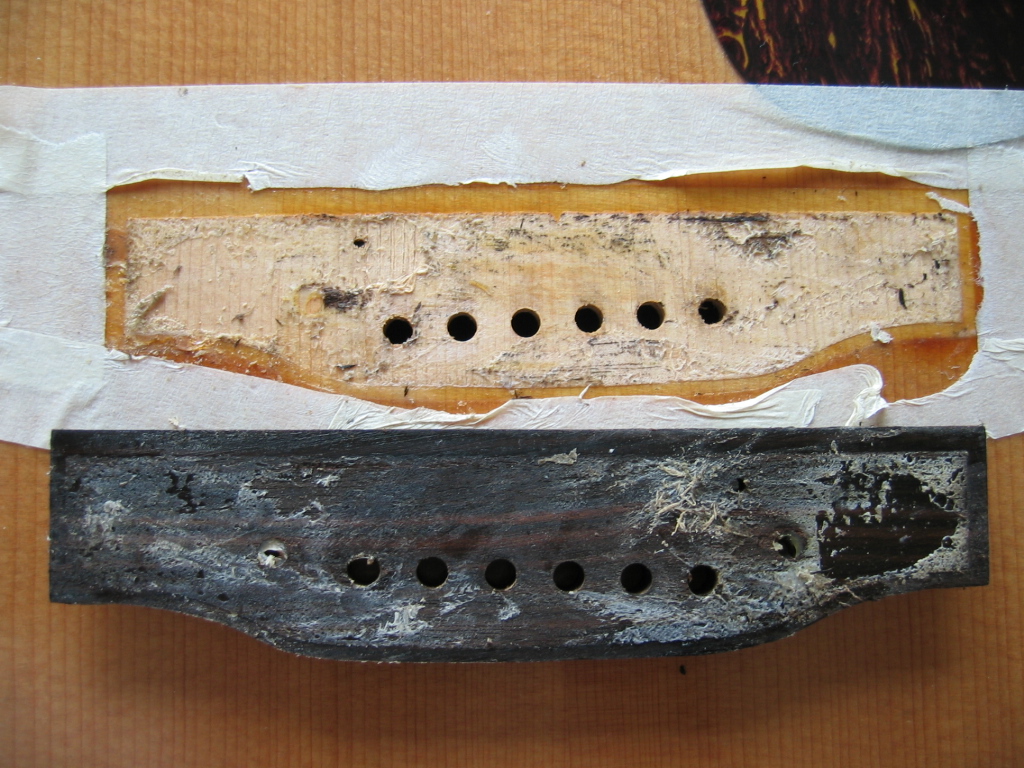

soften the glue. The bridge is then slowly and carefully removed. Notice
the film of residual glue on the finish. The earlier repairman applied the
glue in an attempt to glue down the bridge but in most cases, this is an
exercise in futility as all wood glue works best when there's wood-to-wood

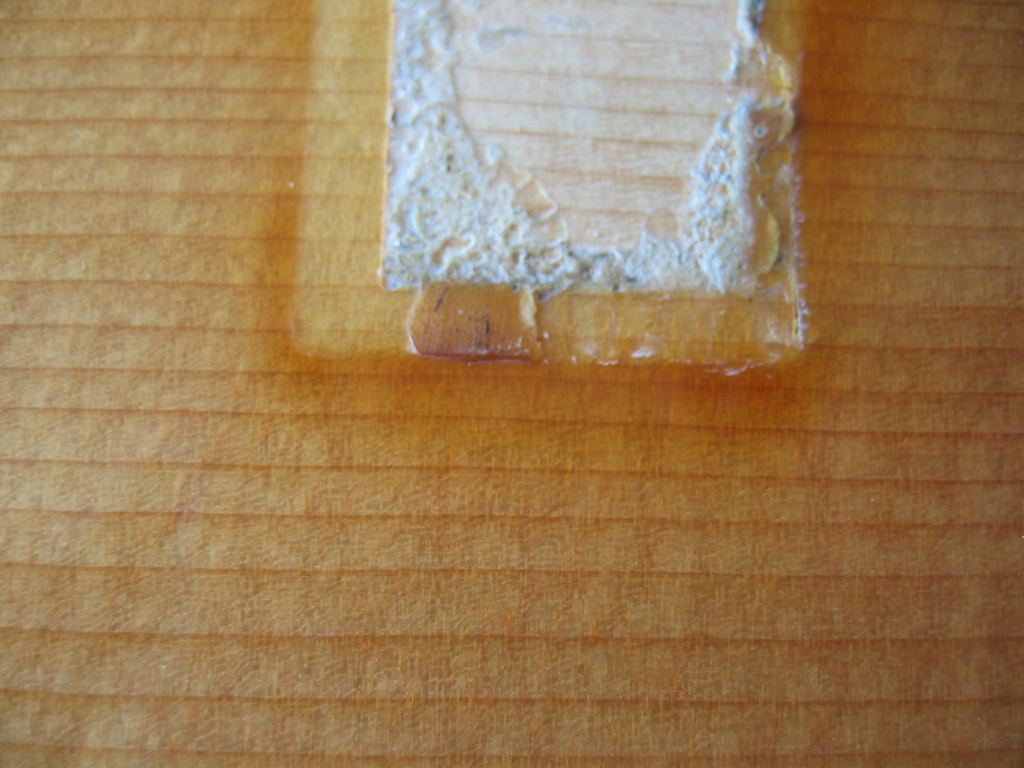

contact. The margin of lacquer that borders around the footprint of the
bridge is larger than necessary. I would prefer to see about a 1mm to
1.5mm border shy of the actual bridge footprint. |
|

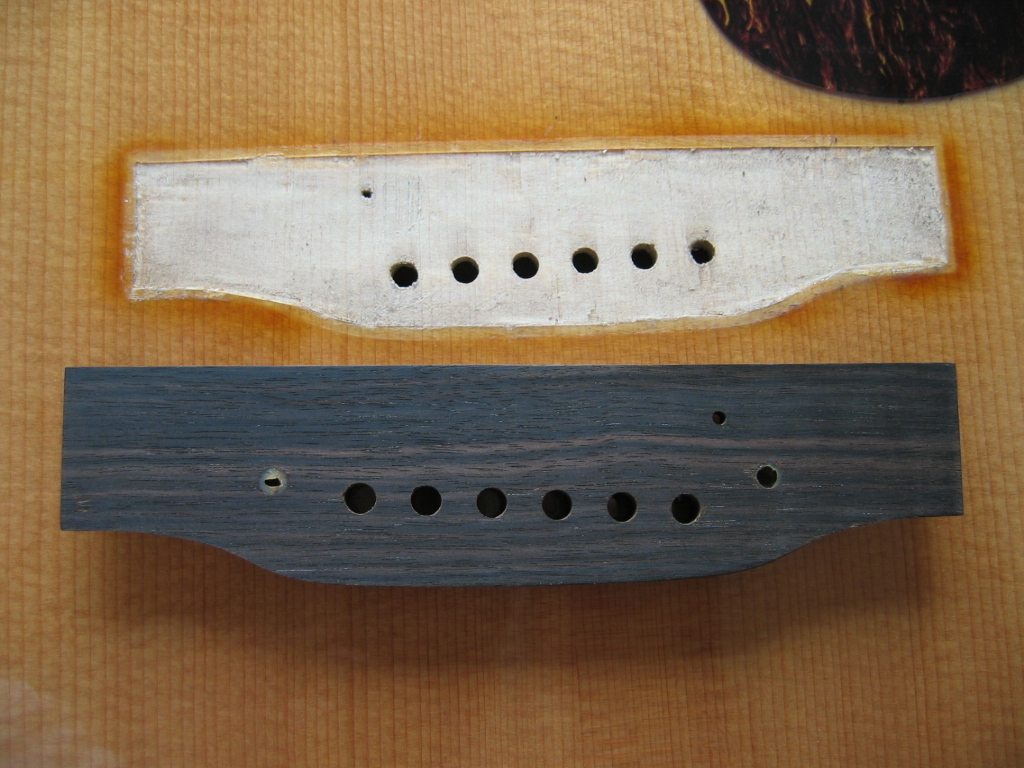

The residual
glue are carefully removed, and slowly and carefully removed. The bottom
of the bridge is also scraped clean and sanded to conform to the radius of
the top. I'd also enlarge the gluing area of the bridge by removing the
lacquer around the bare wood thus maximizing the gluing area. |
|

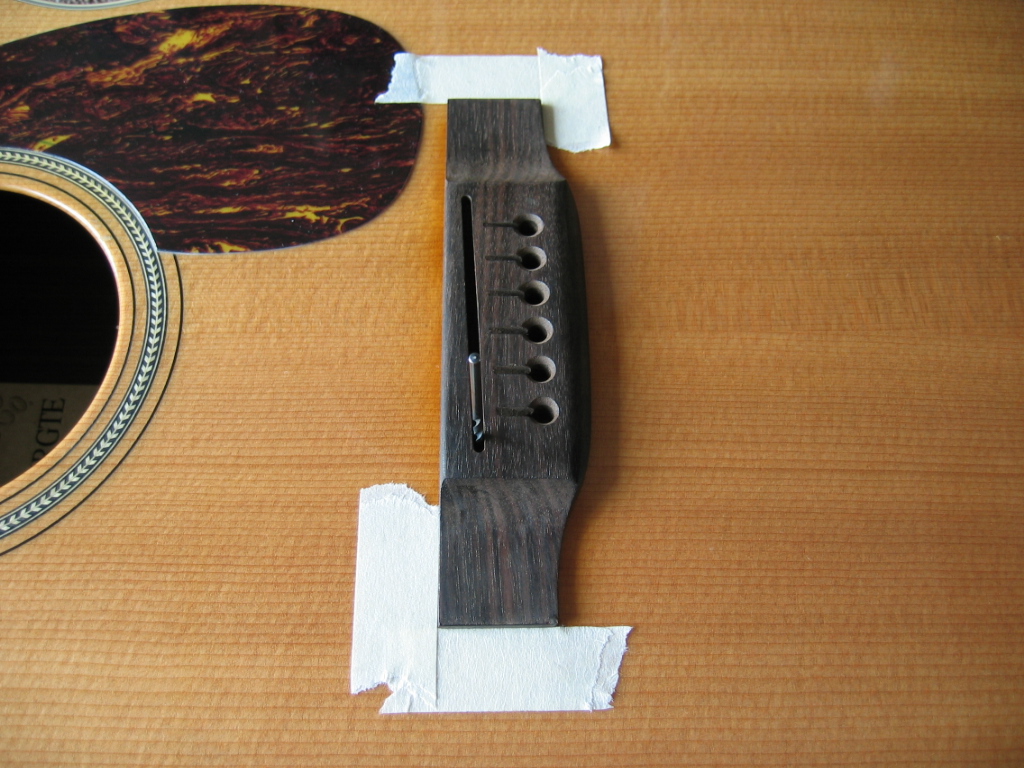

The position of the bridge is then located and masked before
gluing. The drill bit also helps to prevent the bridge from shifting when
clamped later. |
|

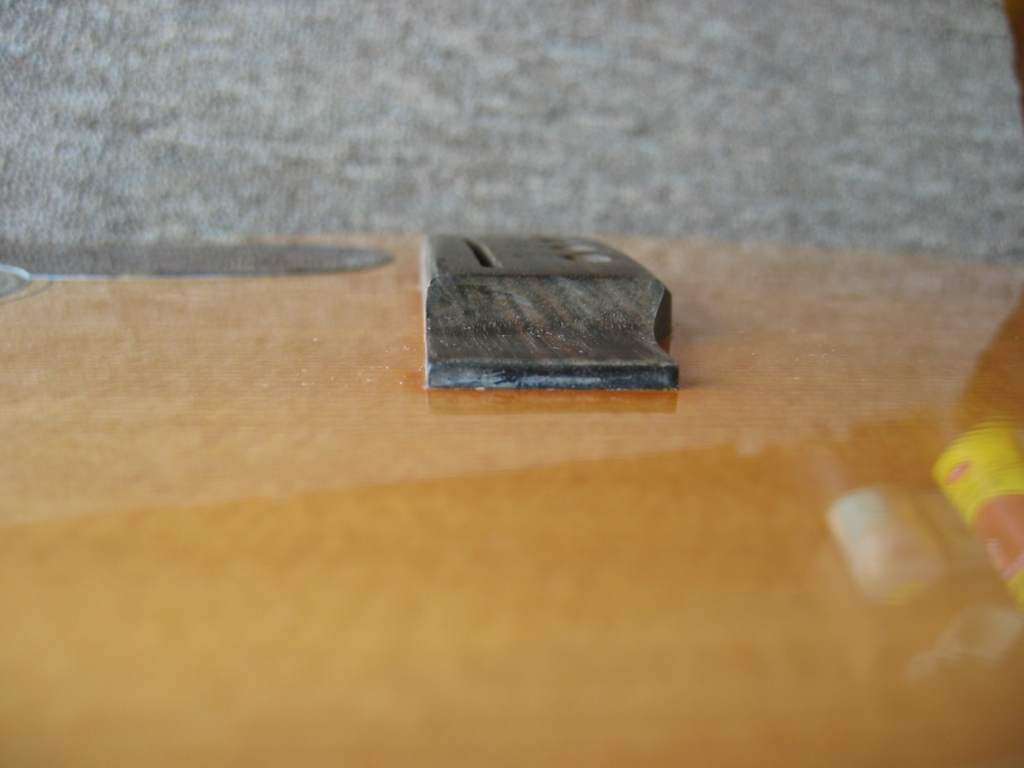

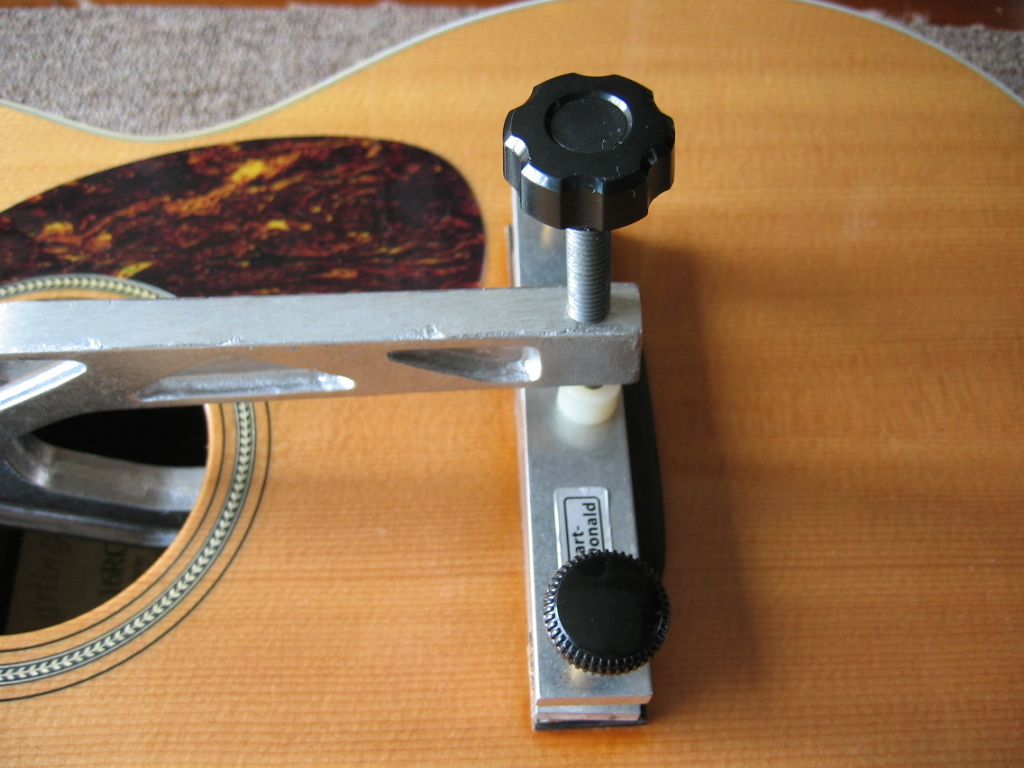

The bridge is
clamped and glue squeeze out cleaned up. |
|
|

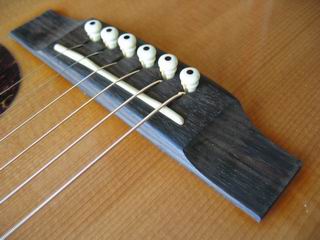

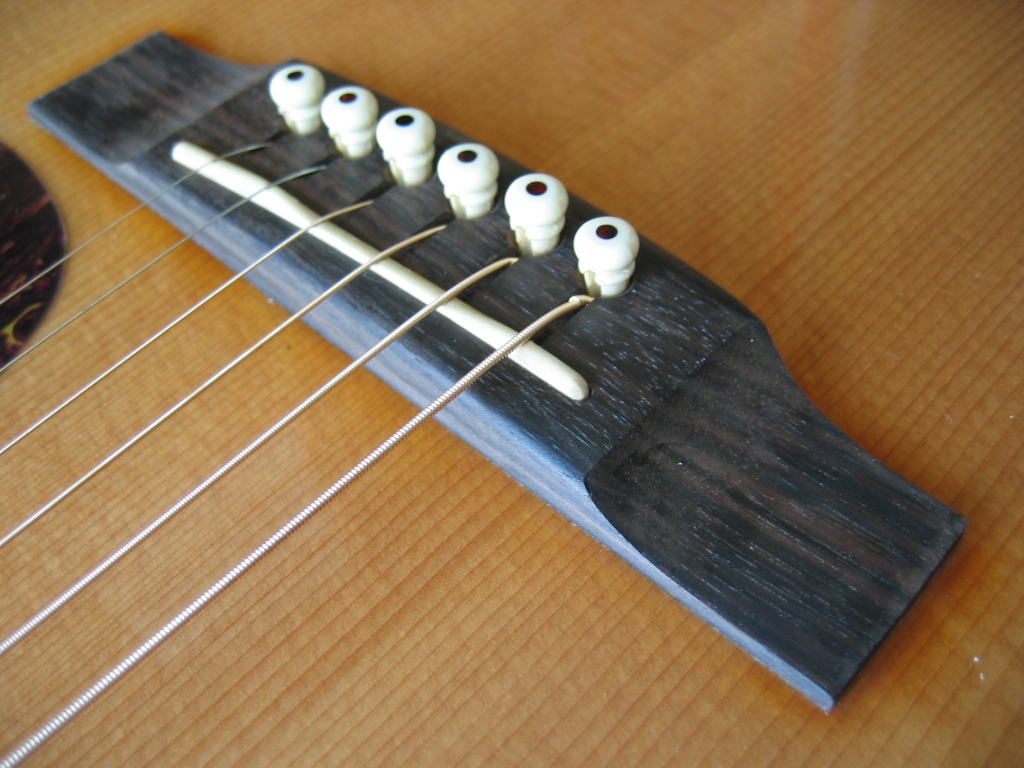

The guitar's strung up 24 hours after the bridge has
been clamped. |
|

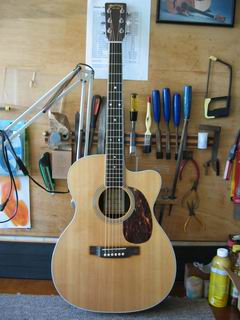

The guitar's
cleaned up, electronics installed, set up and ready to
go. |
